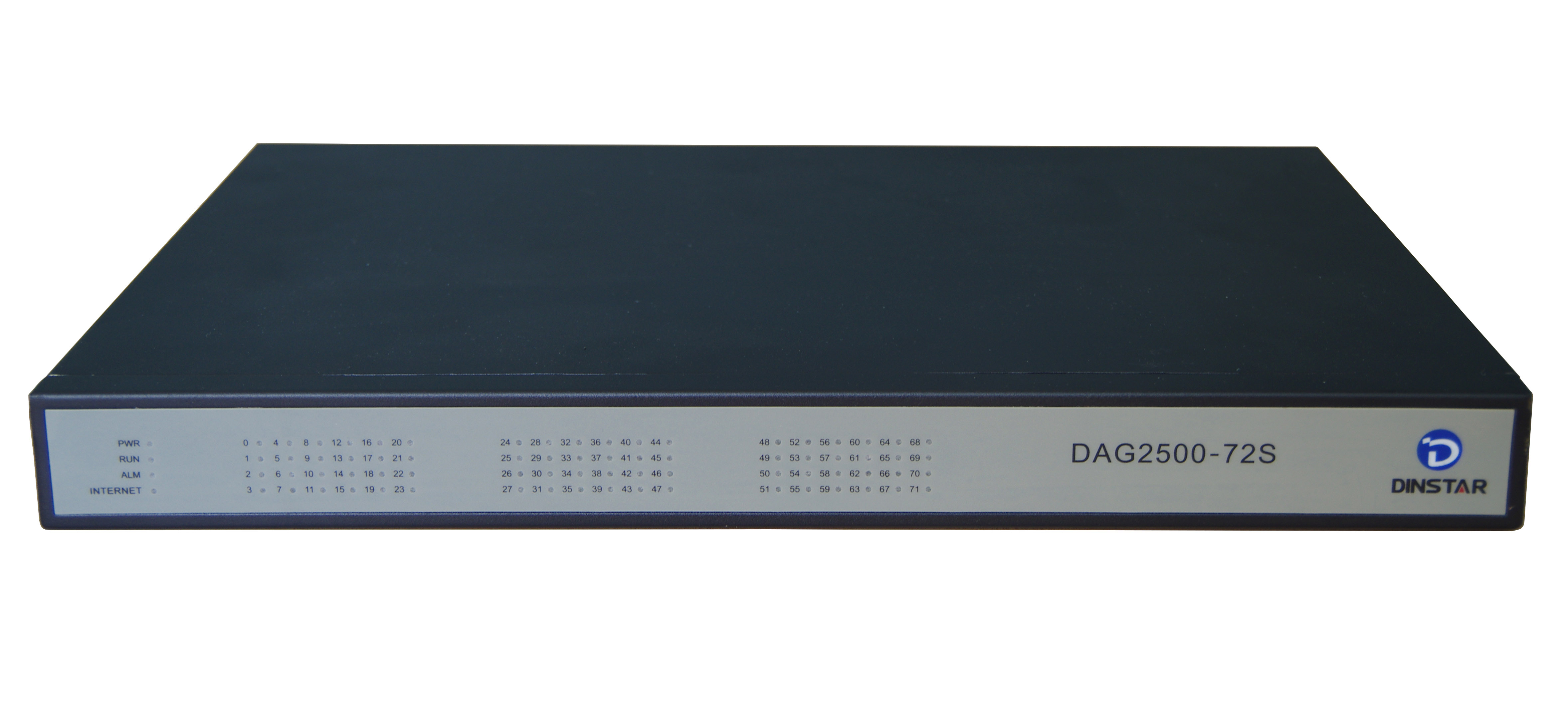

DAG2500 is a functional analog gateway offering seamless connectivity between VoIP and traditional phone system. It’s a highly-integrated gateway which provides 72 FXS ports with standard R21 interface in 1U size. Users can easily connect their analog phone, fax, PBX via standard voice interface.DAG2500 supports the standard SIP protocol and it’s compatible with leading IMS/NGN platform and SIP-based IP telephony system. It is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.
High density gateway, 72 FXS in 1U size
Open-standard SIP support
Support IPv4 and IPv6
5KM Maximum Cabling Length
Elastix/Broadsoft Certification
Multiple codecs: G.711A/U,G.723.1,G.729A/B, iLBC，AMR
Fully compatible with leading IMS/NGN, SIP based IP telephony system

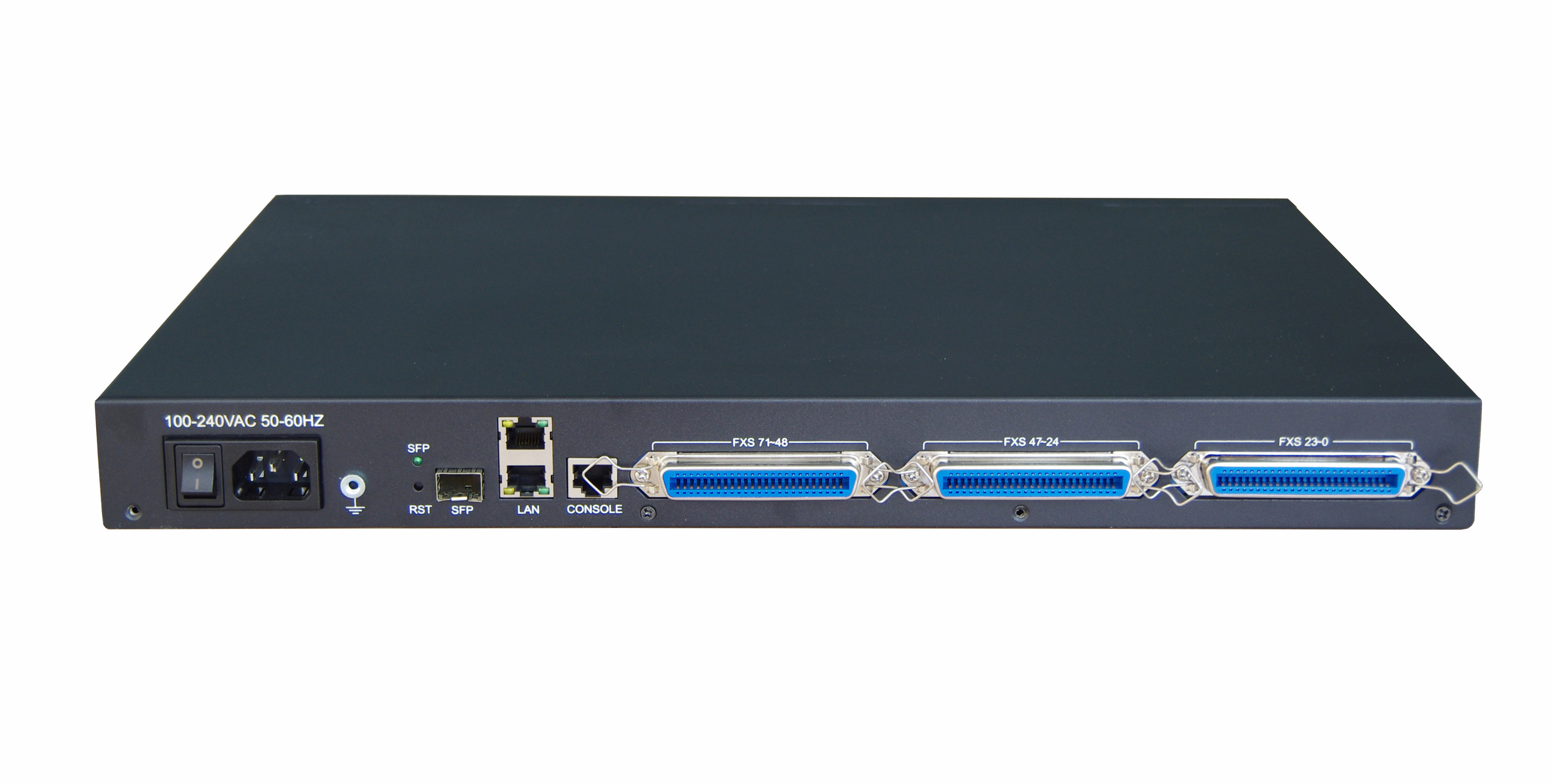

Physical Interfaces
Phone Connector：72 FXS with RJ21, 50 PIN
Console：1* RS232, 115200bps
SFP：N/A, Reserve
Network Interface： 2* 10/100/1000 BaseT
Voice & FAX
G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR
Silence Suppression
Comfort Noise Generation(CNG)
Voice Activity Detection(VAD)
Echo Cancellation(G.168), with up to 128ms
Adaptive (Dynamic) Jitter Buffer
Hook Flash
Programmable Gain Control
T.38/Pass-through
Modem/POS
DTMF mode: Signal/RFC2833/INBAND
VLAN 802.1P/802.1Q
Layer3 QoS and DiffServ
FXS
Connector: RJ21
Dial Mode: DTMF and Pulse
Pulse: 10 and 20 PPS
Caller ID: DTMF/FSK CLI Presentation
Max Cable Length: 5KM
Reversed Polarity
Programmable Call Progress Tone
VoIP
Protocol: SIP v2.0 (UDP/TCP),RFC3261
SDP,RTP(RFC2833), RFC3262,
3263,3264,3265,3515,2976,3311
RTP/RTCP, RFC2198, 1889
RFC4028 Session Timer
RFC3266 IPv6 in SDP
RFC2806 TEL URI
RFC3581 NAT,rport
Primary/Backup SIP Server
Outbound Proxy
DNS SRV/ A Query/NATPR Query
SIP Trunk
Early Media/Early Answer
NAT:STUN, Static/Dynamic NAT
Supplementary Service
Call Waiting
Blind Transfer
Attend Transfer
Call Pickup
Call Forward on Busy
Call Forward on No Reply
Unconditional Call Forward
Warm/Immediately Hotline
Call Hold
Do-not-disturb
3-Way Conference
Message Waiting Indicator
Software Features
Phone Connector：72 FXS with RJ21, 50 PIN
Console：1* RS232, 115200bps
SFP：N/A, Reserve
Network Interface： 2* 10/100/1000 BaseT
Voice & FAX
G.711A/U law, G.723.1, G.729A/B,G.726,iLBC,AMR
Silence Suppression
Comfort Noise Generation(CNG)
Voice Activity Detection(VAD)
Echo Cancellation(G.168), with up to 128ms
Adaptive (Dynamic) Jitter Buffer
Hook Flash
Programmable Gain Control
T.38/Pass-through
Modem/POS
DTMF mode: Signal/RFC2833/INBAND
VLAN 802.1P/802.1Q
Layer3 QoS and DiffServ
FXS
Connector: RJ21
Dial Mode: DTMF and Pulse
Pulse: 10 and 20 PPS
Caller ID: DTMF/FSK CLI Presentation
Max Cable Length: 5KM
Reversed Polarity
Programmable Call Progress Tone
VoIP
Protocol: SIP v2.0 (UDP/TCP),RFC3261
SDP,RTP(RFC2833), RFC3262,
3263,3264,3265,3515,2976,3311
RTP/RTCP, RFC2198, 1889
RFC4028 Session Timer
RFC3266 IPv6 in SDP
RFC2806 TEL URI
RFC3581 NAT,rport
Primary/Backup SIP Server
Outbound Proxy
DNS SRV/ A Query/NATPR Query
SIP Trunk
Early Media/Early Answer
NAT:STUN, Static/Dynamic NAT
Supplementary Service
Call Waiting
Blind Transfer
Attend Transfer
Call Pickup
Call Forward on Busy
Call Forward on No Reply
Unconditional Call Forward
Warm/Immediately Hotline
Call Hold
Do-not-disturb
3-Way Conference
Message Waiting Indicator
Software Features
•Hunting Group
•Web ACL
•Telnet ACL
•Action URL
•PPPoE/IPv4/IPv6
•Digitmap
•Bandwidth Optimization
•Routing Rules based Prefixes
•Caller/Called Number Manipulation
Maintenance
• SNMP v1/v2/v3
• TR069
• Auto Provisioning
• Web/Telnet
• Configuration Backup/Restore
• Firmware Upgrade via Web
• CDR
• Syslog
• Ping/Tracert Test
• Network Capture
• Outward Test(GR909)
• NTP/Daylight Saving Time
• IVR local Maintenance
• Cloud-based Management
Environmental
•Power Supply: 100-240VAC, 50-60 Hz
•Power Consumption:75W
•Operating Temperature:0 ℃ ~ 45 ℃
Storage Temperature: -20 ℃ ~80 ℃
•Humidity:10%-90% Non-Condensing
•Dimensions(W/D/H): 440*280*44mm(1U)
•Unit Weight: 4.0kg
•Compliance: CE, FCC
